Used 2011 WESTMOR INDUSTRIES 23,200GAL 350PSI LPG POR for sale
PROPANE GAS TANK TRAILERS / WESTMOR INDUSTRIES PROPANE GAS TANK TRAILERS / WESTMOR INDUSTRIES 23,200GAL 350PSI LPG POR PROPANE GAS TANK TRAILERS / #1093
Description

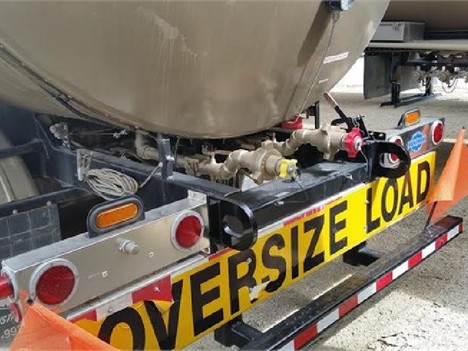

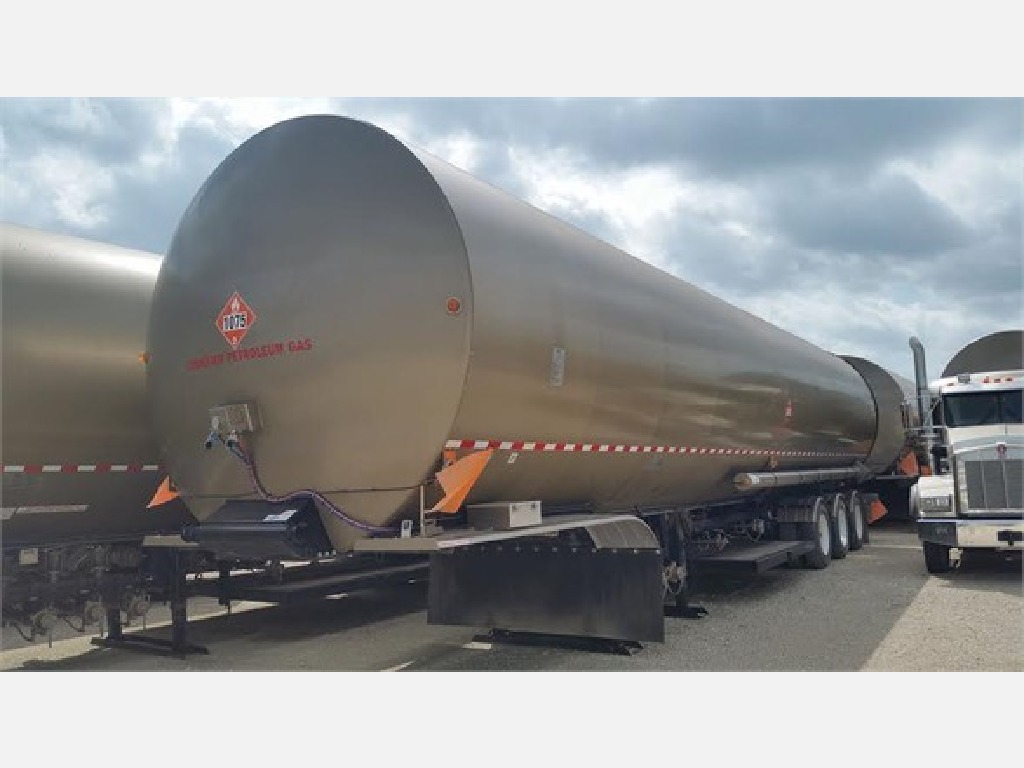

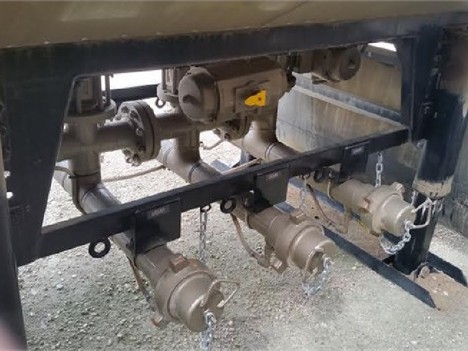

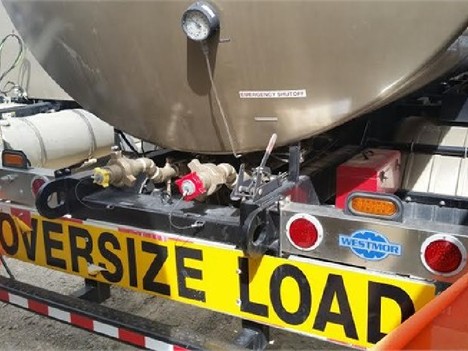

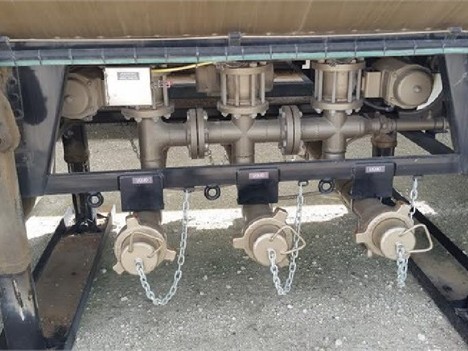

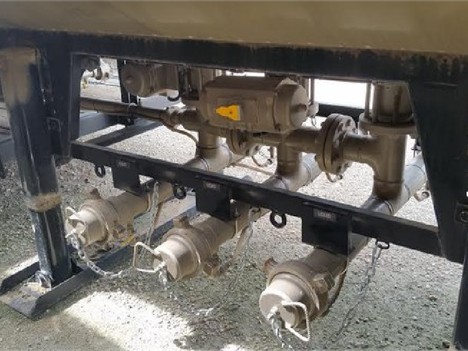

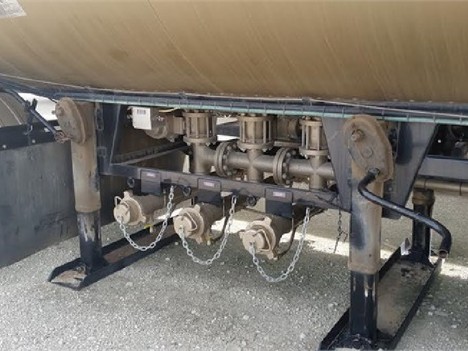

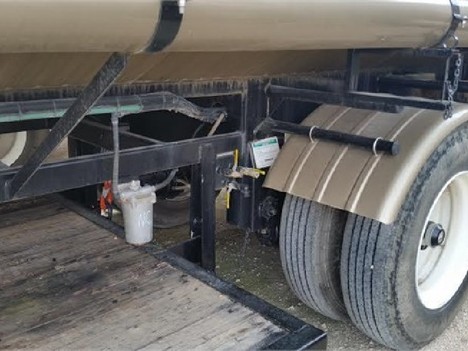

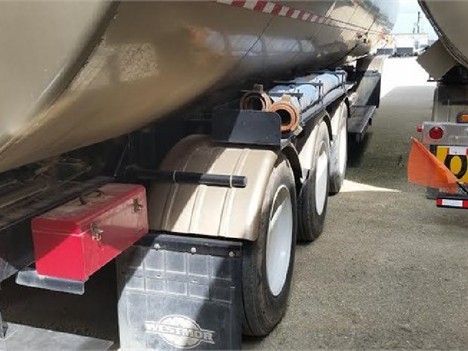

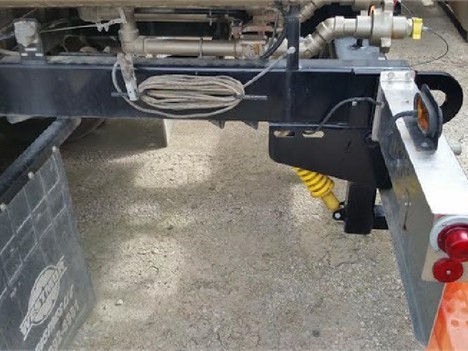

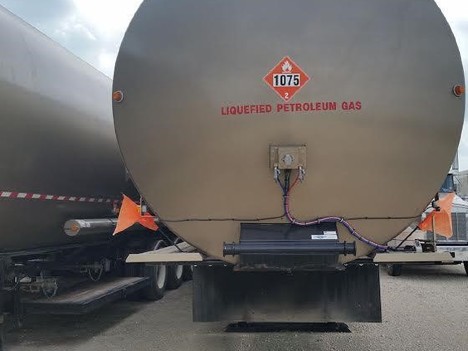

2011 Westmor Industries Portable LPG Storage Trailer 23,200 Gallons 350 PSI 108 I.D. 52' Length Triple Axle Budd Wheels Trailer is 74,600LBS VESSEL: Fabricator: Westmor Industries, LLC Capacity: 23,200- US gallon D.O.T. Specification: None ASME Code Section VIII, Division I Material: SA-612 normalized Product Service: Propane Working Pressure: 350 PSI Temperature Range: -50 Degrees F to +120 Degrees F Baffles: None Manway: One (1) 16a manway in rear head Openings: - Front Bottom: Three (3) 4a liquid, one (2) 4a vapor - Rear Bottom: One (1) 3a liquid, (1) 2a vapor - Rear Head: 1, volume gauge, 1 thermo well located in the man way - Middle Bottom Two (2) 2a for future heat coils, One (1) spare 4a opening UNDERCARRIAGE: Sub-frame: Front and rear sub-frames constructed with 1/4a steel Kingpin: Bolted adjustable king pin plate, with lifting lugs. Suspension: 3,Hendrickson Intraxx air ride 25,000lbs. suspensions. with dust shields, 77.5a trac, Anchorlok Life Seal Brake Hubs: 10-bolt hub piloted cast iron hubs Drums: Canadian approved braking material and drums ABS System: Midland a (2 sensor - 1 monitor) brake system Wheels: Twelve (12) 8.5aX 24.5a hub piloted painted steel wheels Tires: Twelve (12) Firestone 11R X 24.5a tires. (tall) Landing Gear: Four (4) sets of manual landing gears with a 12a X 72a channel Fenders: Front a Single contour, painted fenders w/Westmor mud flaps chambers. Bumper: DOT compliant rear bumper with Guard Cushion under ride attached to each set and anti-sail mud flap brackets Rear a 3 sets painted fenders w/Westmor mud flaps and anti-sail mud flap brackets protection
Specifications
Price | Call for Price |
---|---|
Stock # | 2011WESTMORE |
VIN | VIN not Provided |
Transmission | |
Axles | Tri |
Suspension | Air Ride |
Wheels | Budd Front |
Dimensions | 52.0'L |
